How to configure raid in HP workstation Easy Way

How to configure raid in HP workstation Follow step-by-step easy ways to Power on your workstation.

Raid Boot key in HP (Ctrl+C)

press Ctrl + C in the post screen (with black screen)

now you can find LSI config utility is initializing booting starge

with in the utility you can find the LSISAS2308 adapter (select raid adapter model)

please select it

in the next screen choose raid properties

in the next screen you can find available raids , in our case we have used 3000 mb x 2 SAS’s

in the current configuration of this workstation available raid is Raid 1 , Raid 1E , and 10 , and Raid 0

i have selected Raid 1E

in the next menu you have to select raid disks from no to yes and Press “ C “ create raid

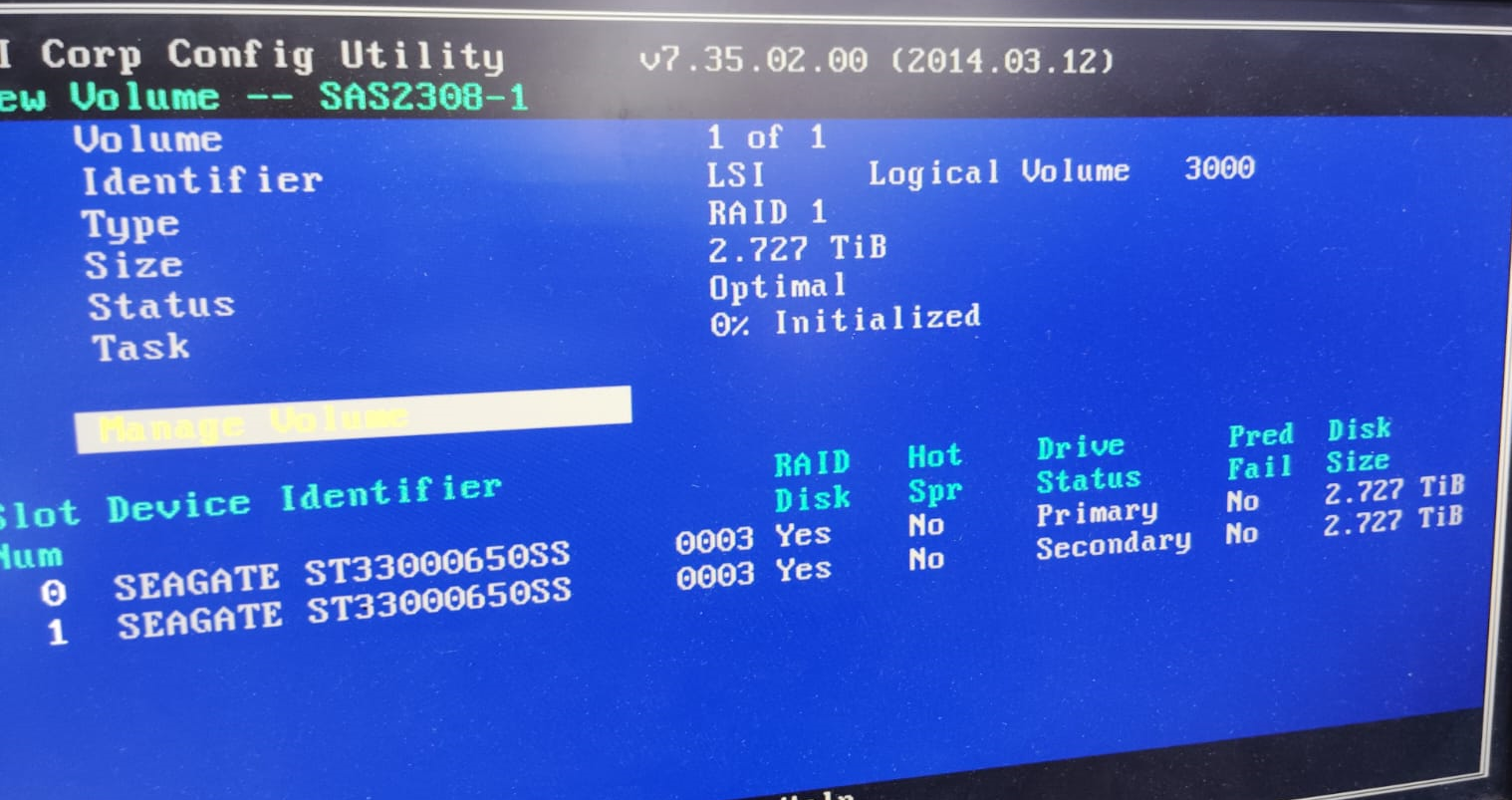

Now raid done.

in the next menu select “Save changes then exit this menu “
